KUMARA 651
Ex. CUST 781

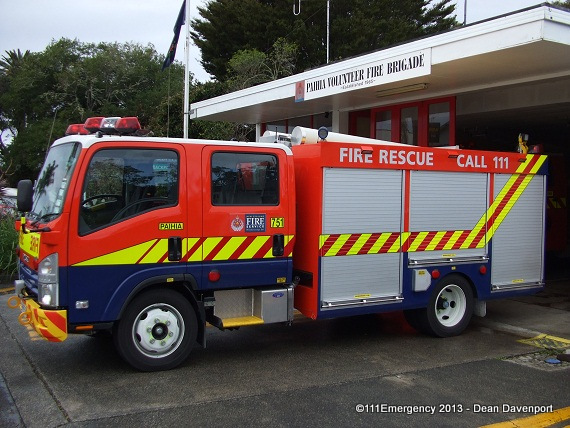

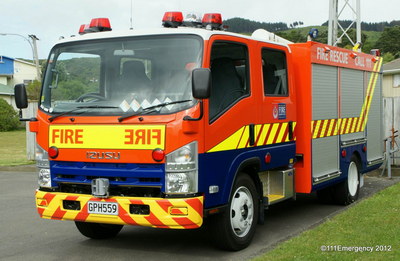

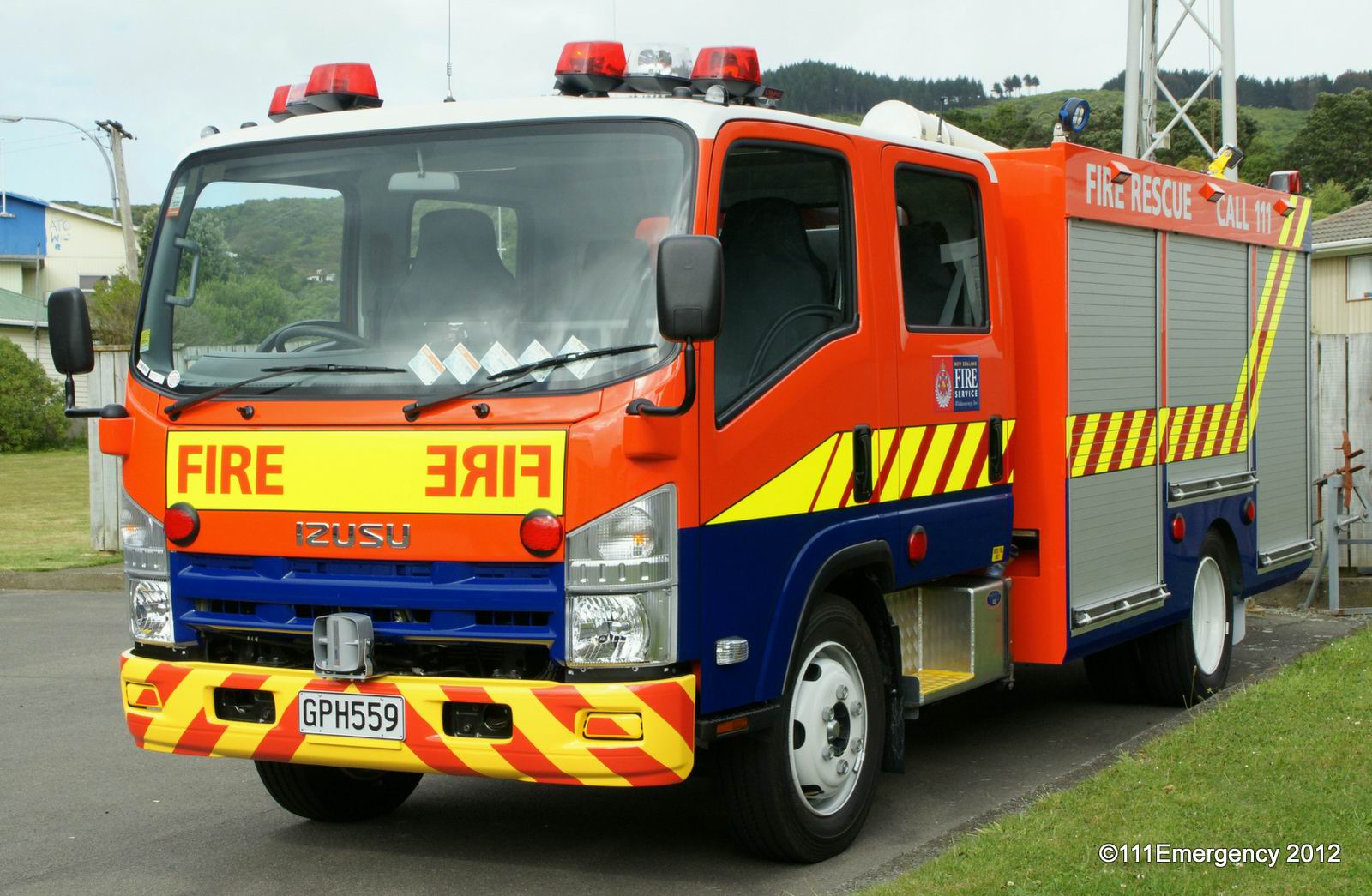

NZFS TYPE 1.5 PROTOTYPE

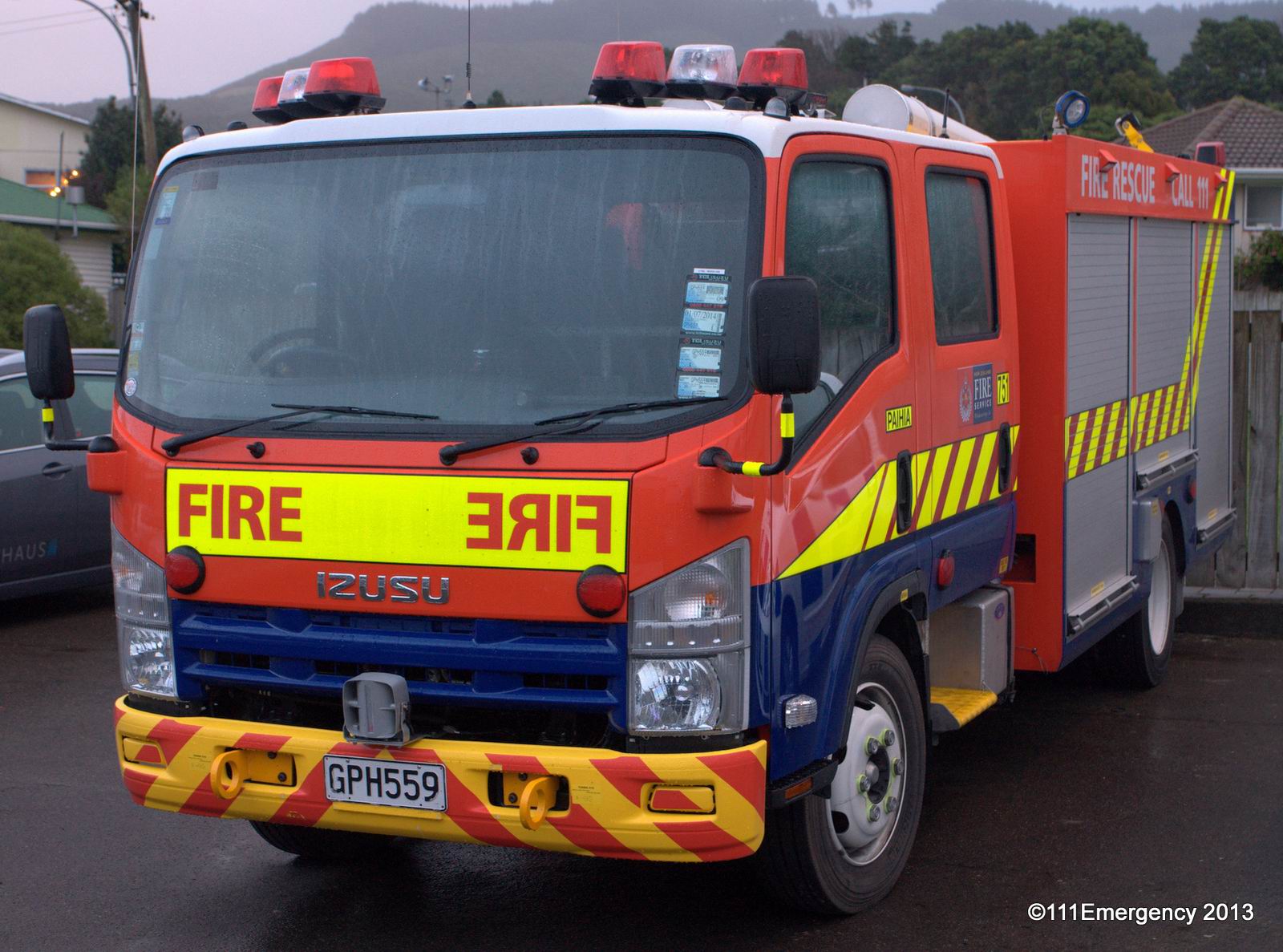

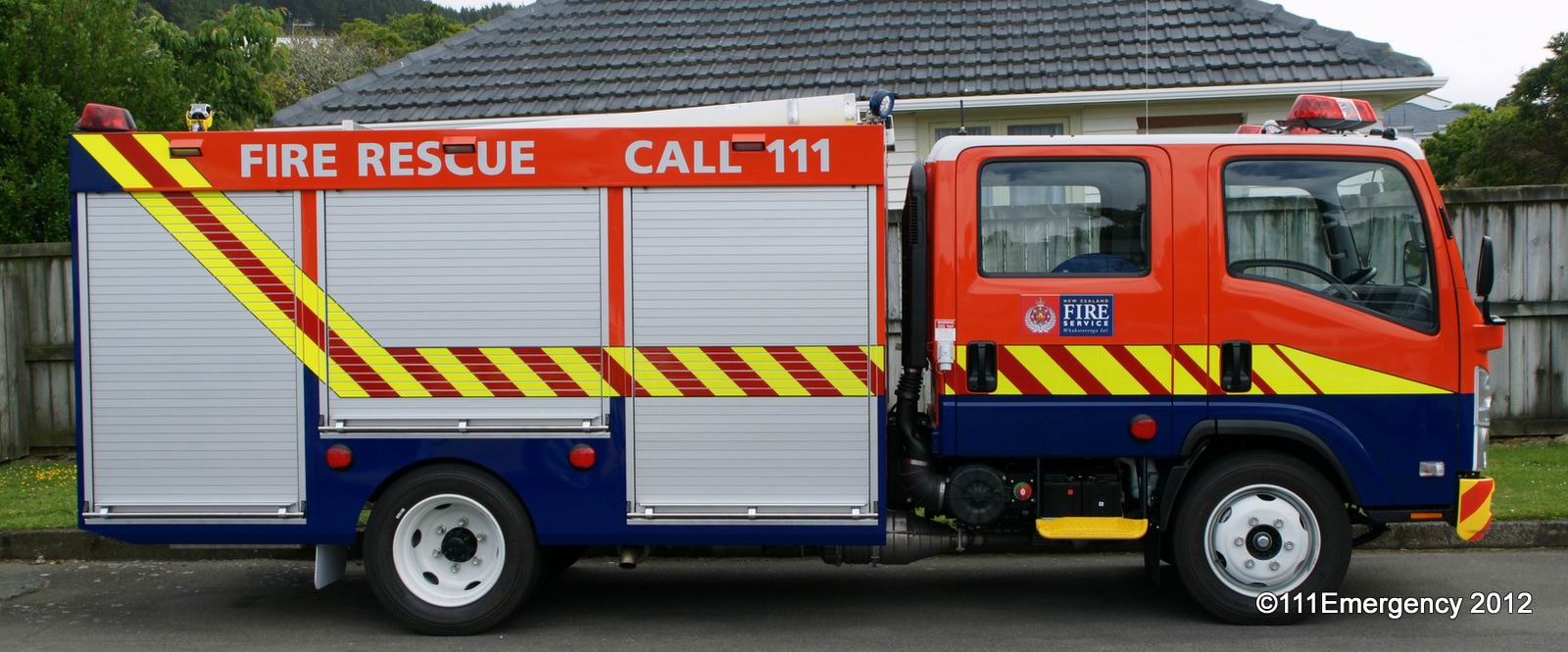

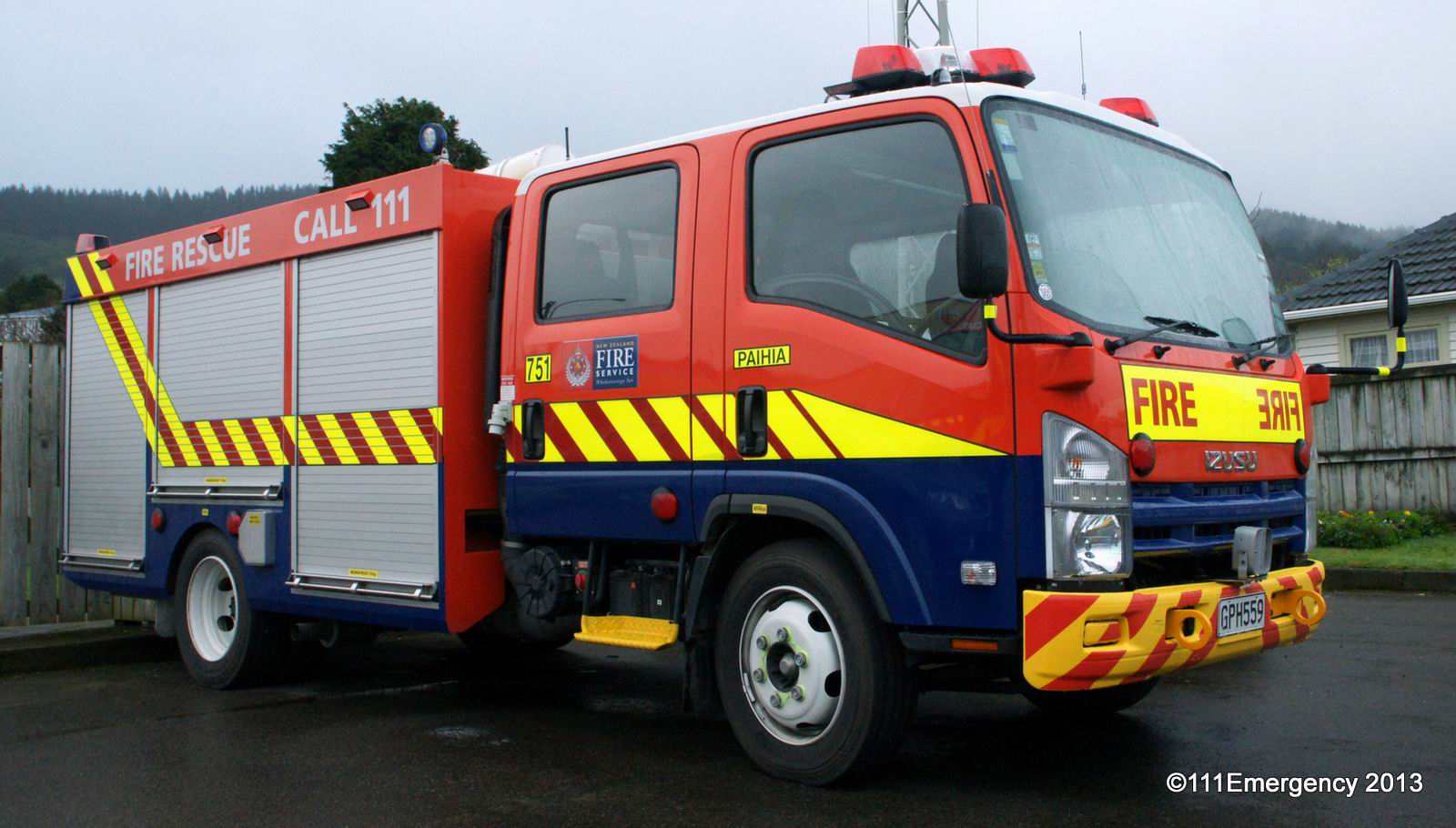

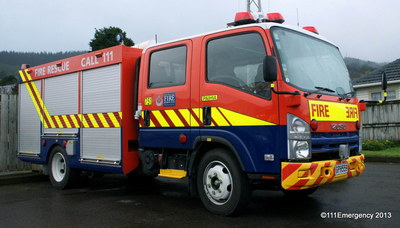

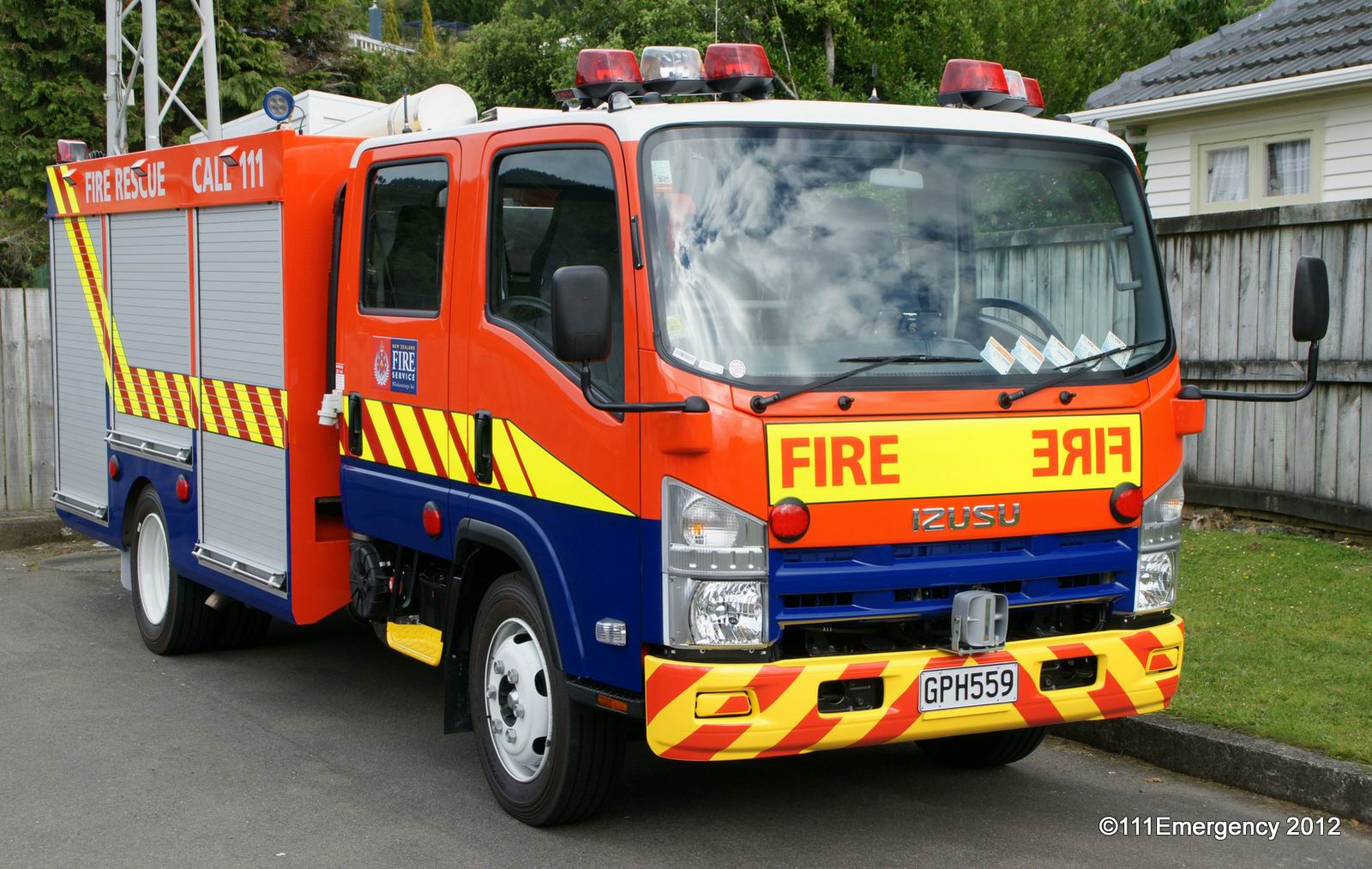

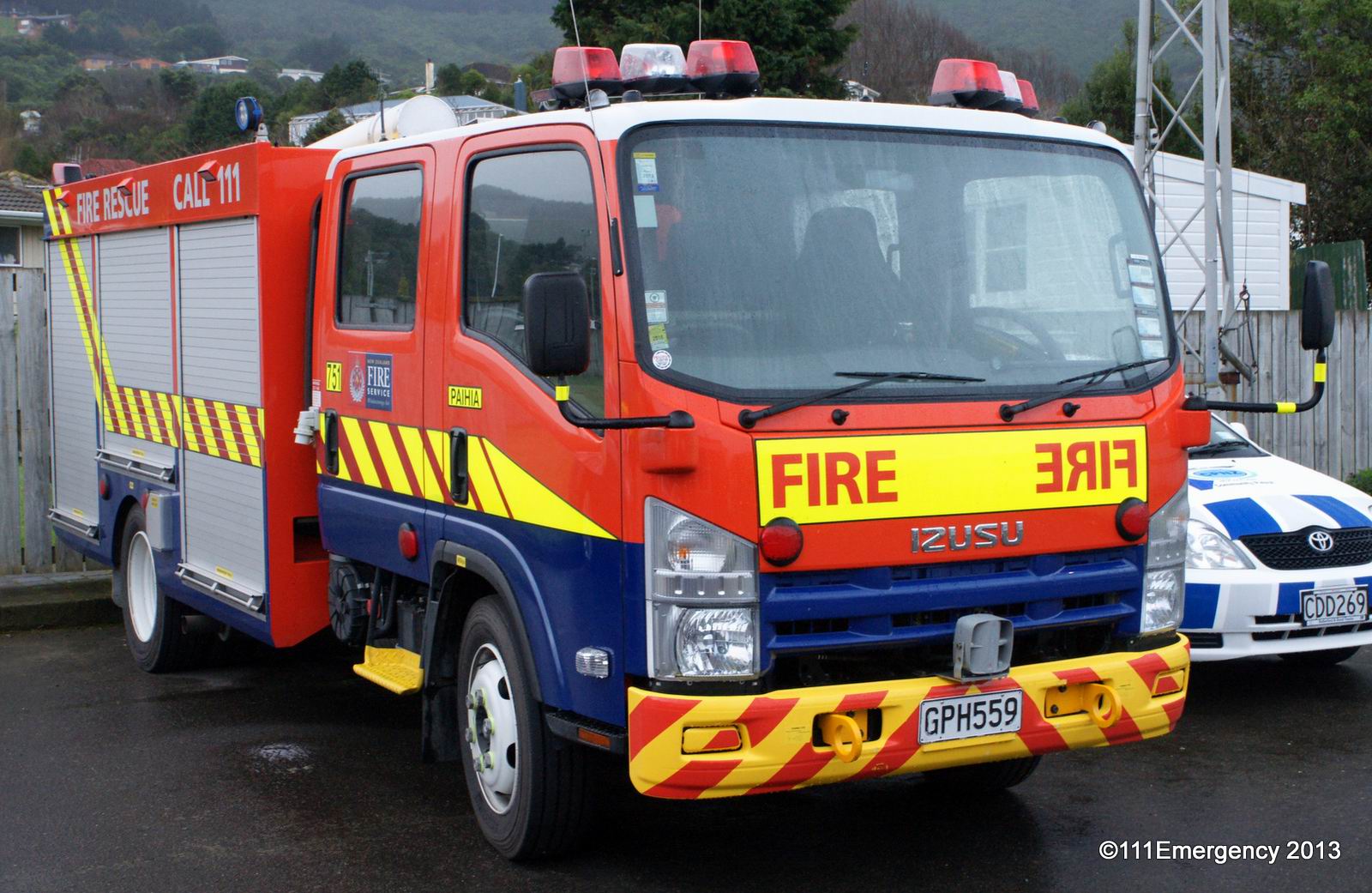

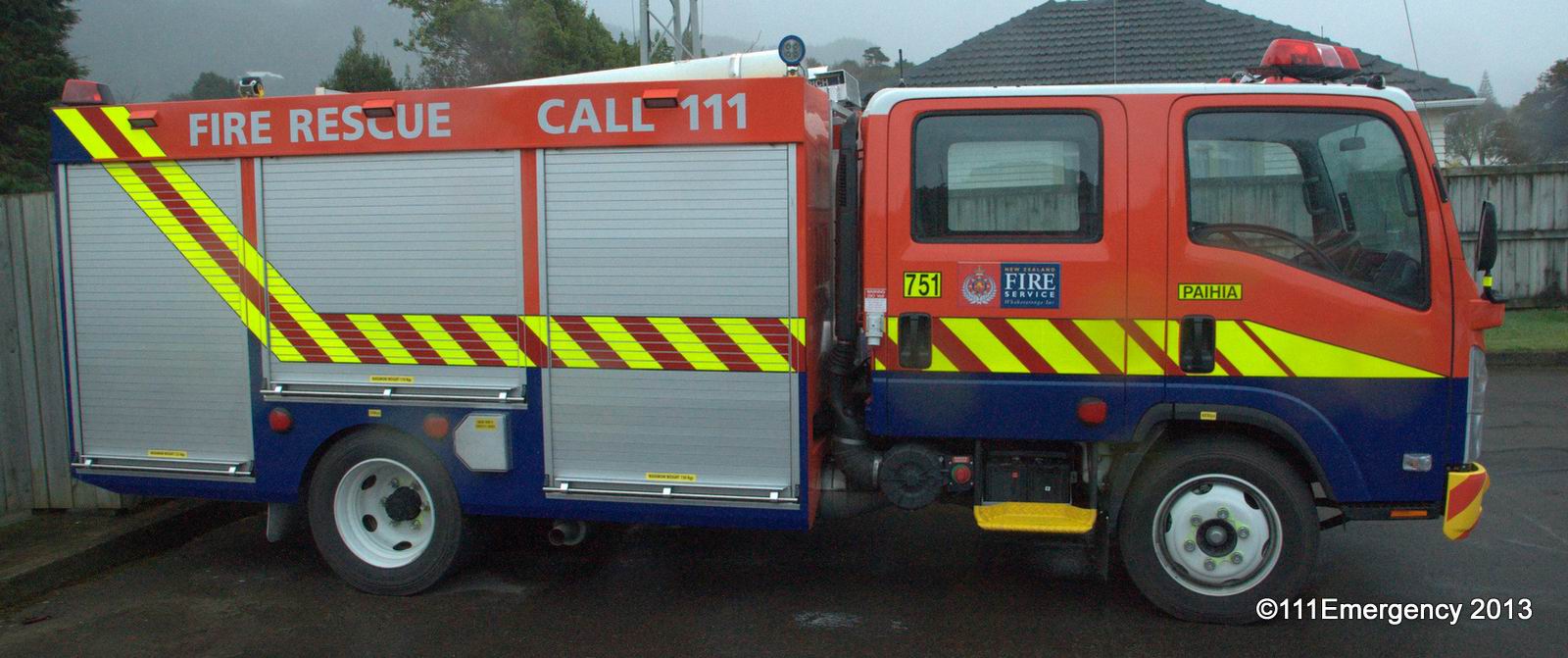

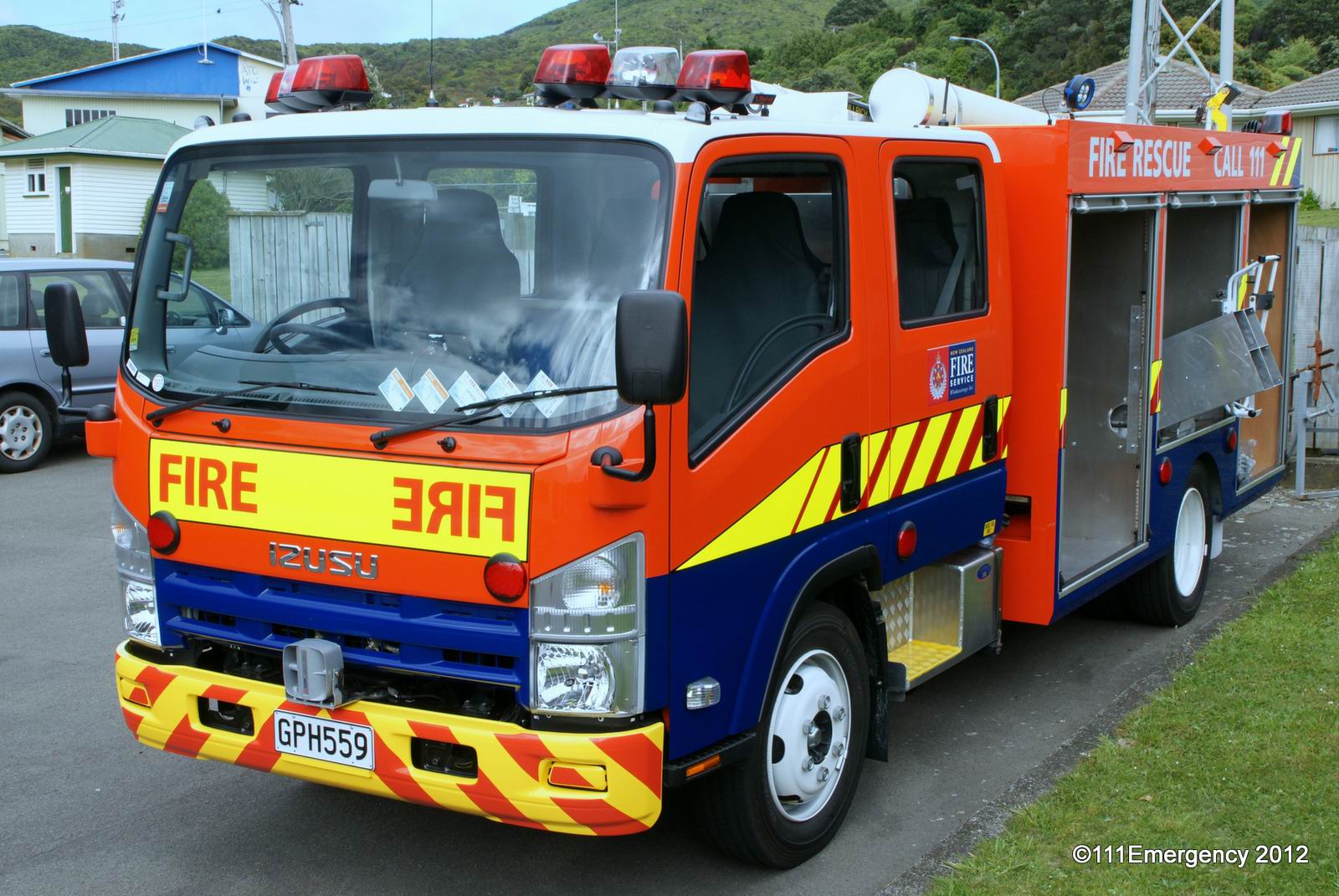

2012 ISUZU NQR500C
GPH 559
Bodywork by Lockheed Martin
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Photo by Dean Davenport | ||
 |
 |
 |
| Photo by Dean Davenport | Photo by Dean Davenport | Photo by Dean Davenport |
 |
 |
 |
| Photo by Dean Davenport | Photo by Dean Davenport | Photo by Dean Davenport |
 |
 |
|
| Photo by Dean Davenport | Photo by Dean Davenport | |
|

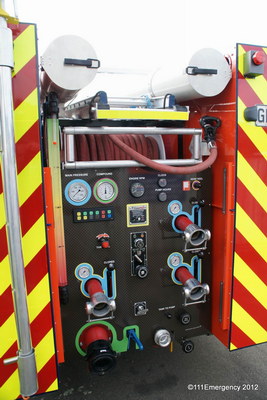

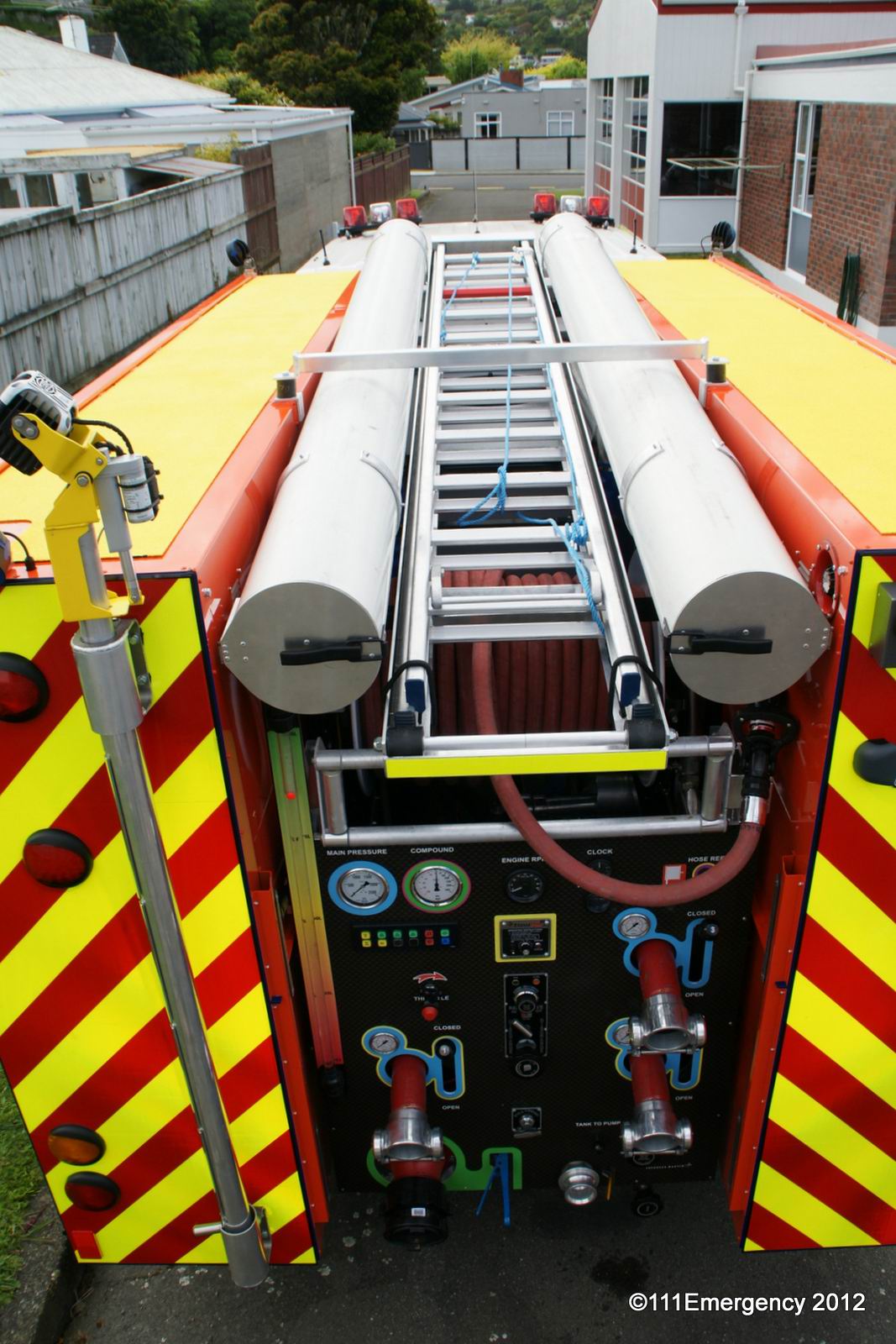

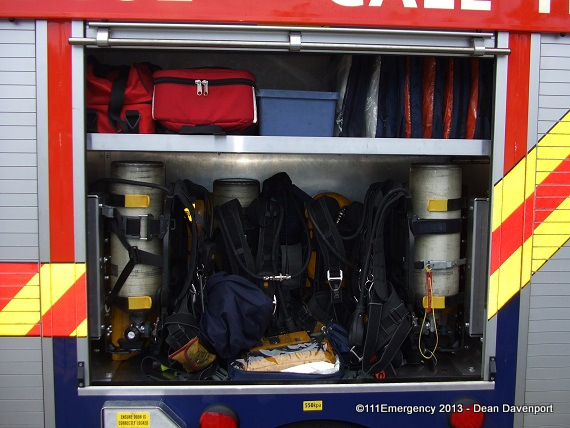

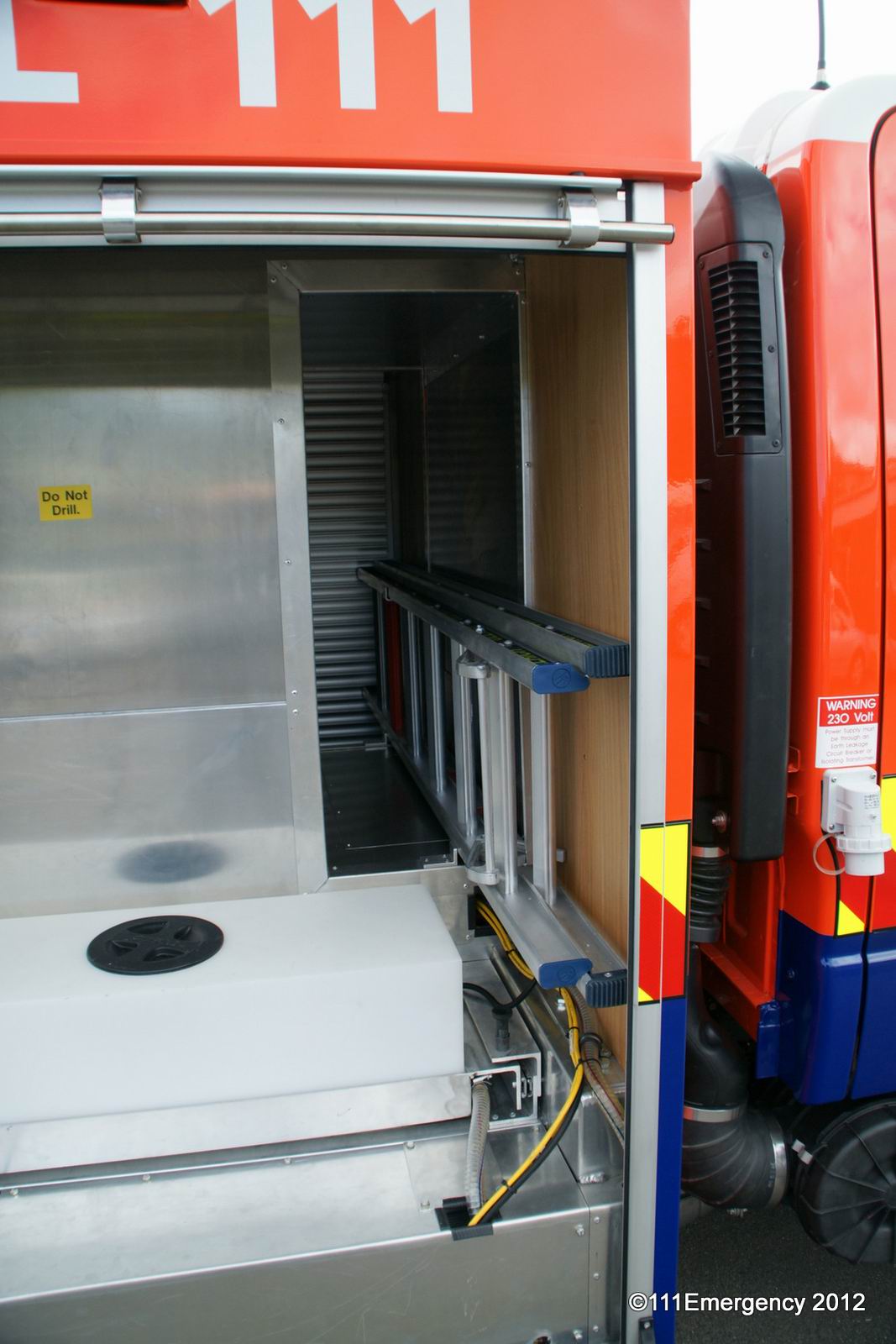

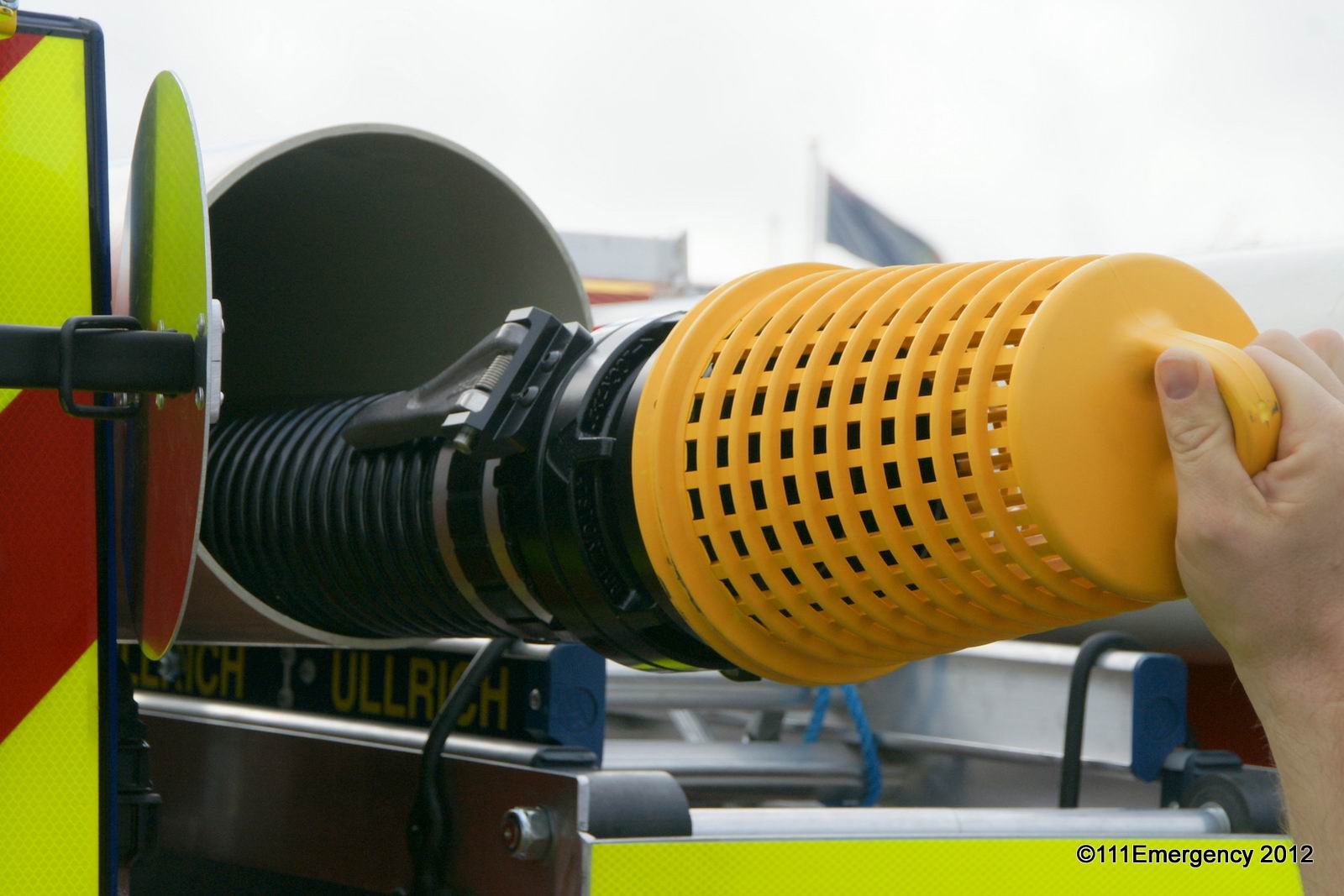

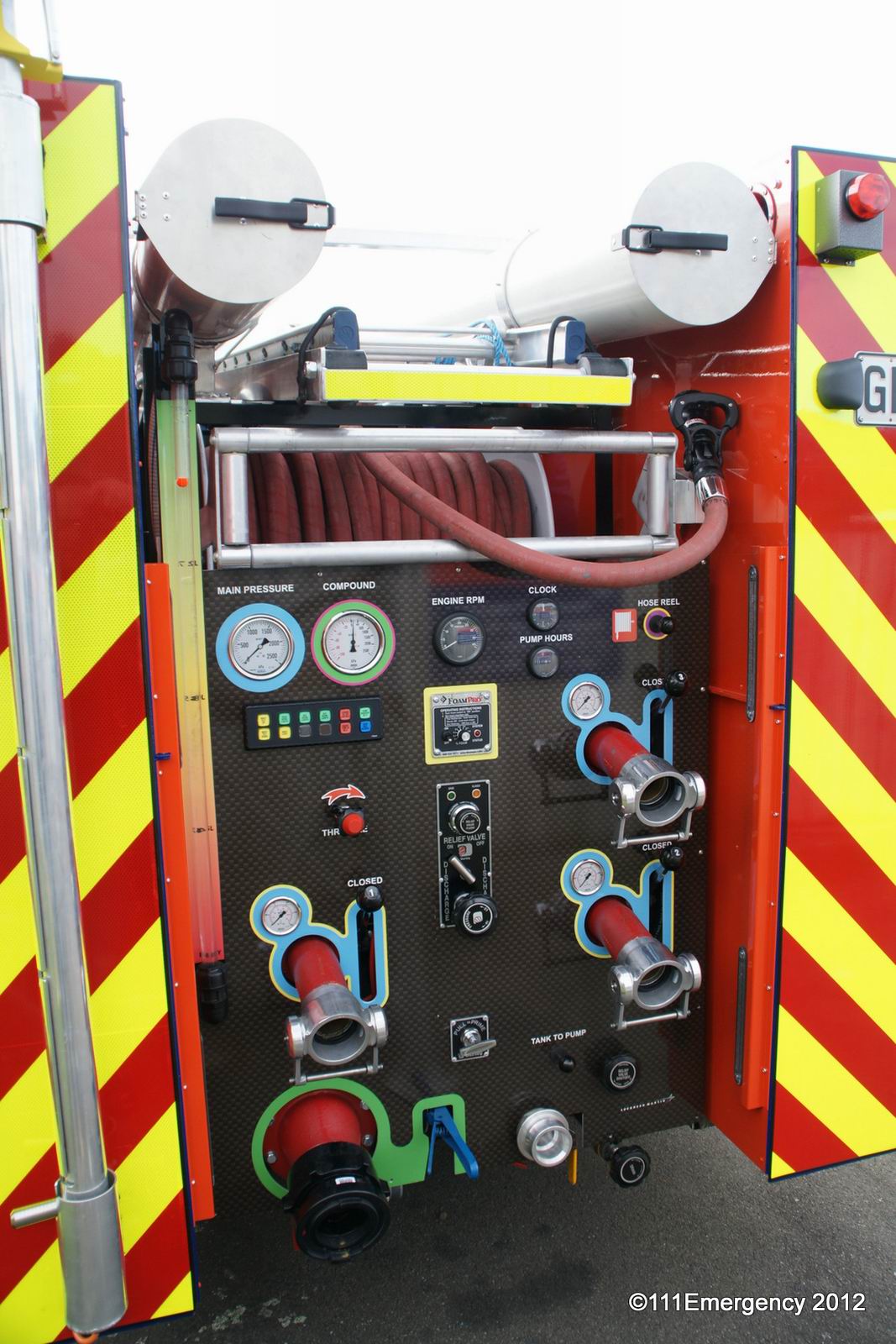

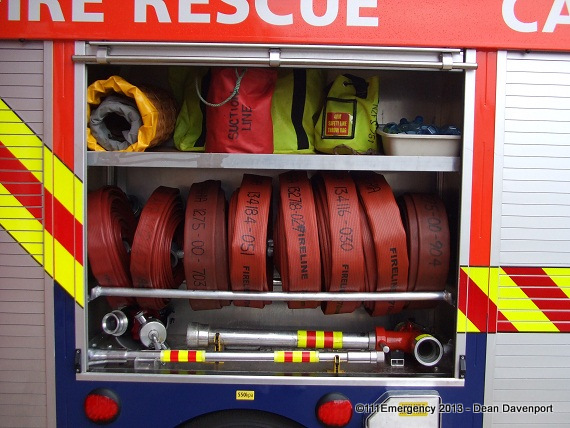

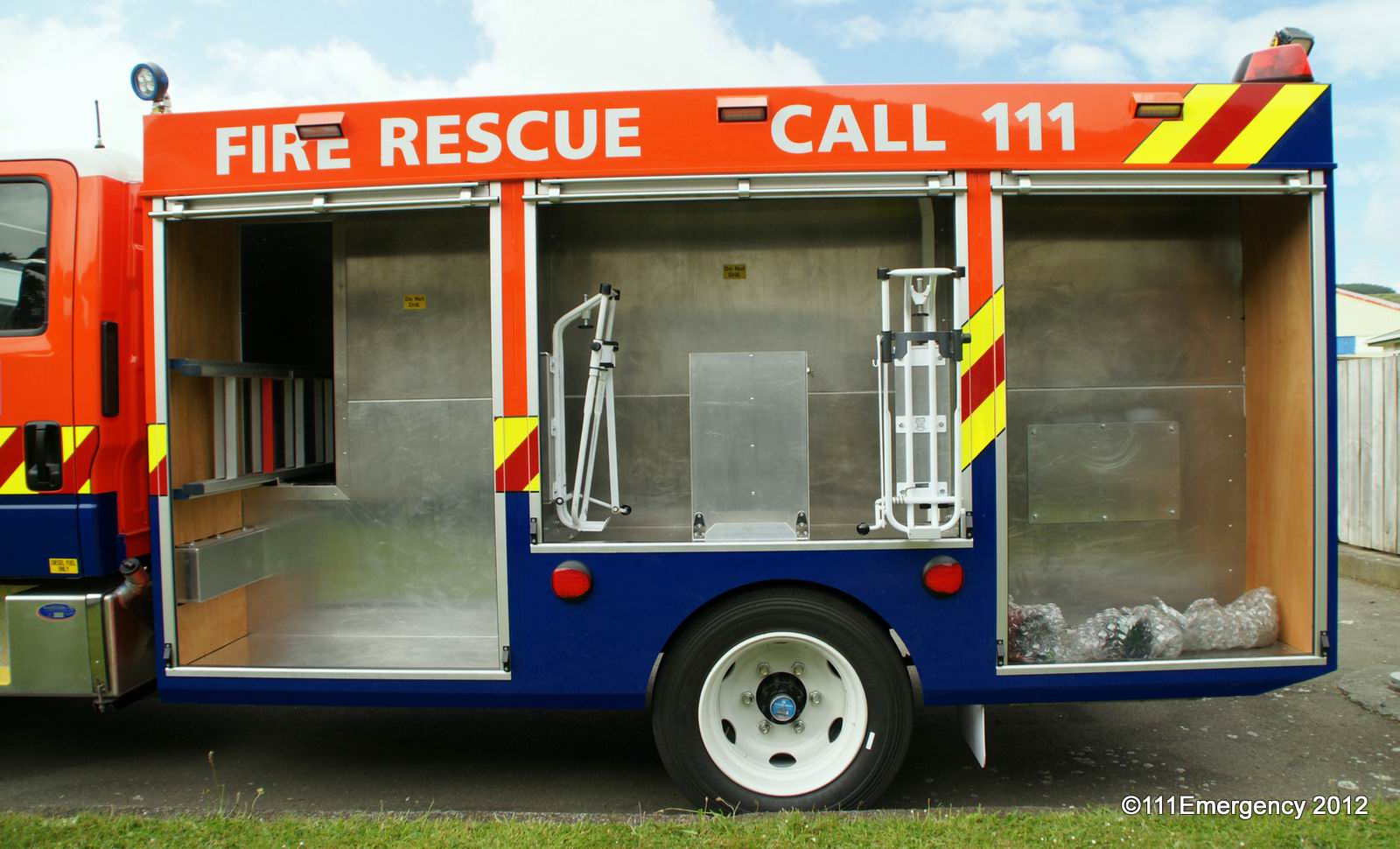

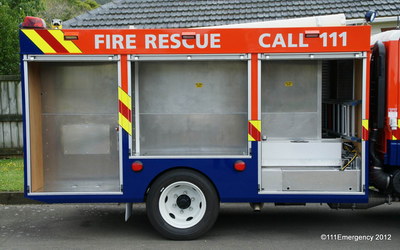

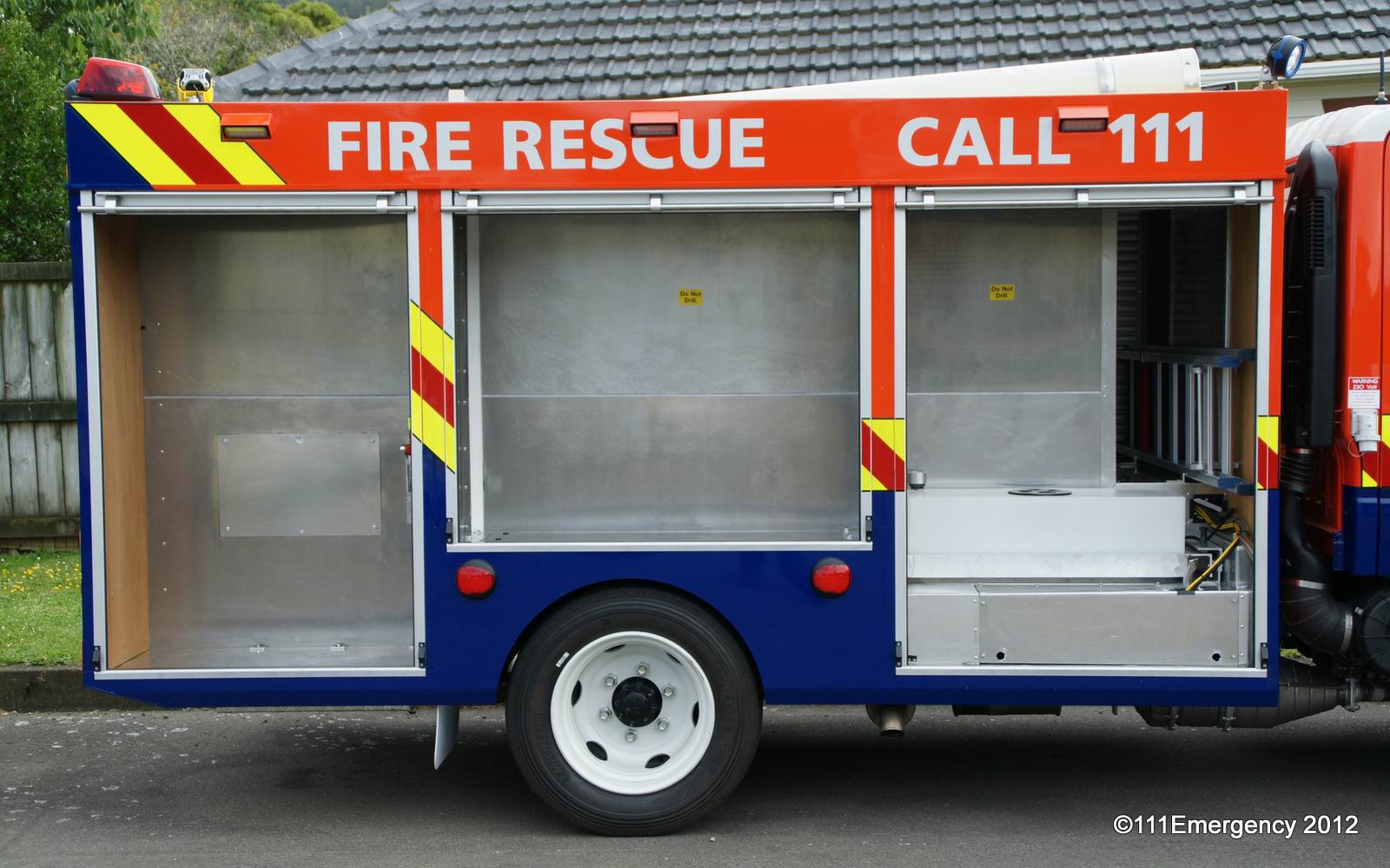

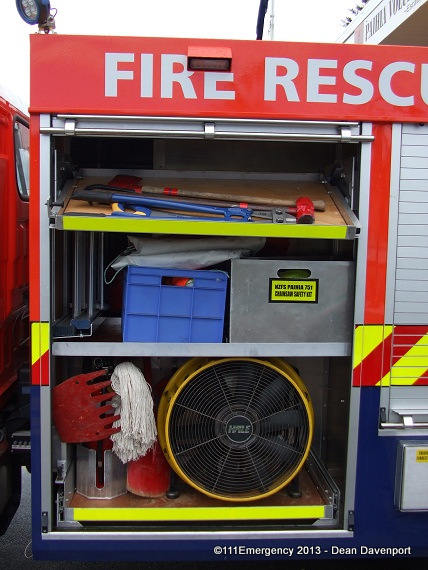

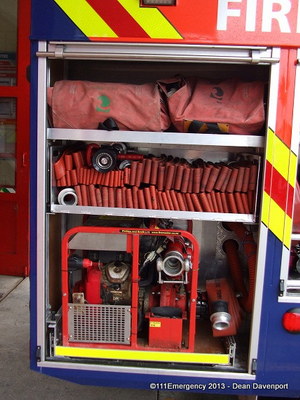

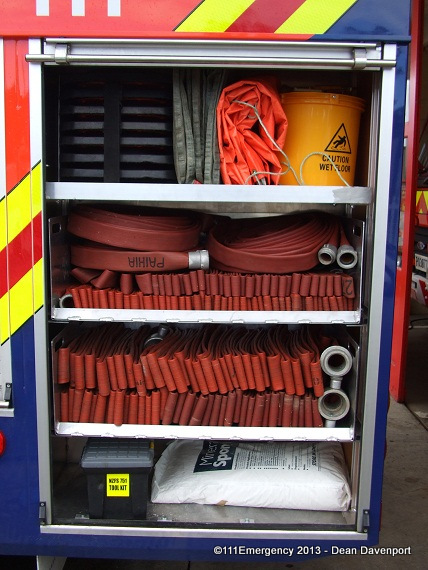

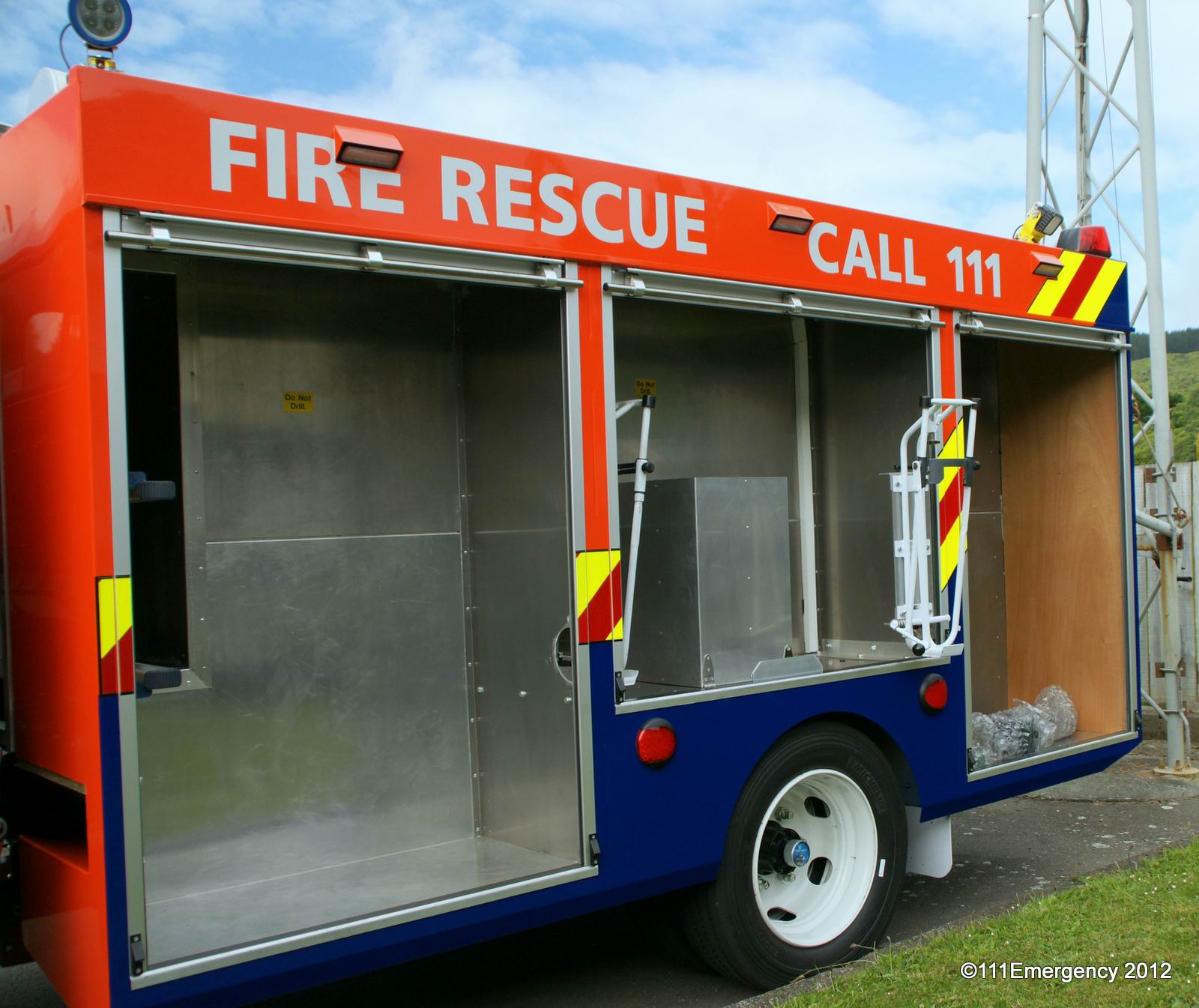

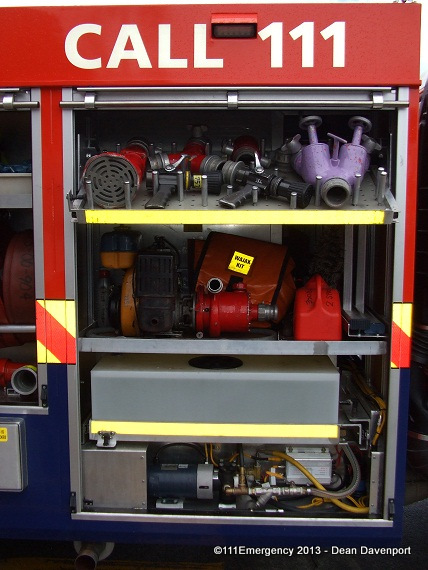

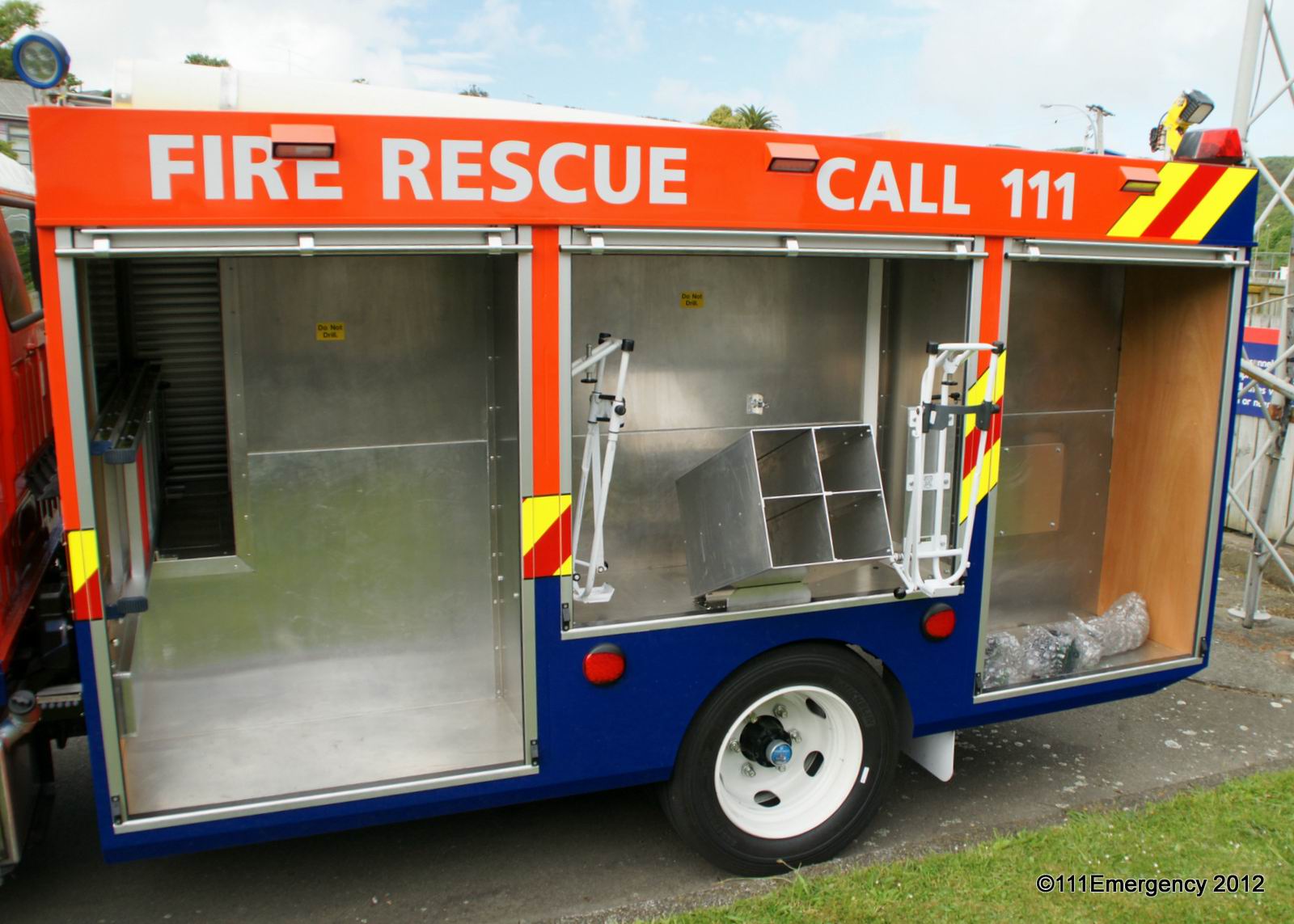

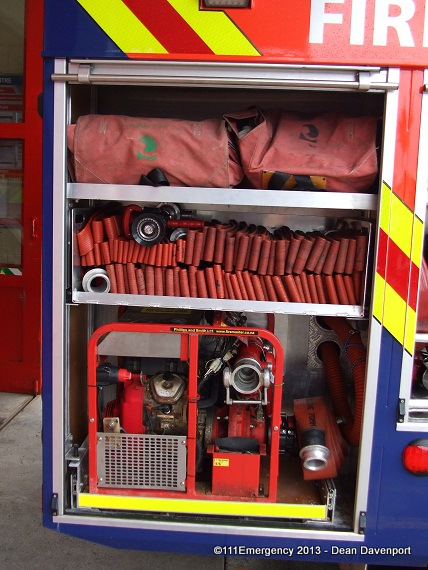

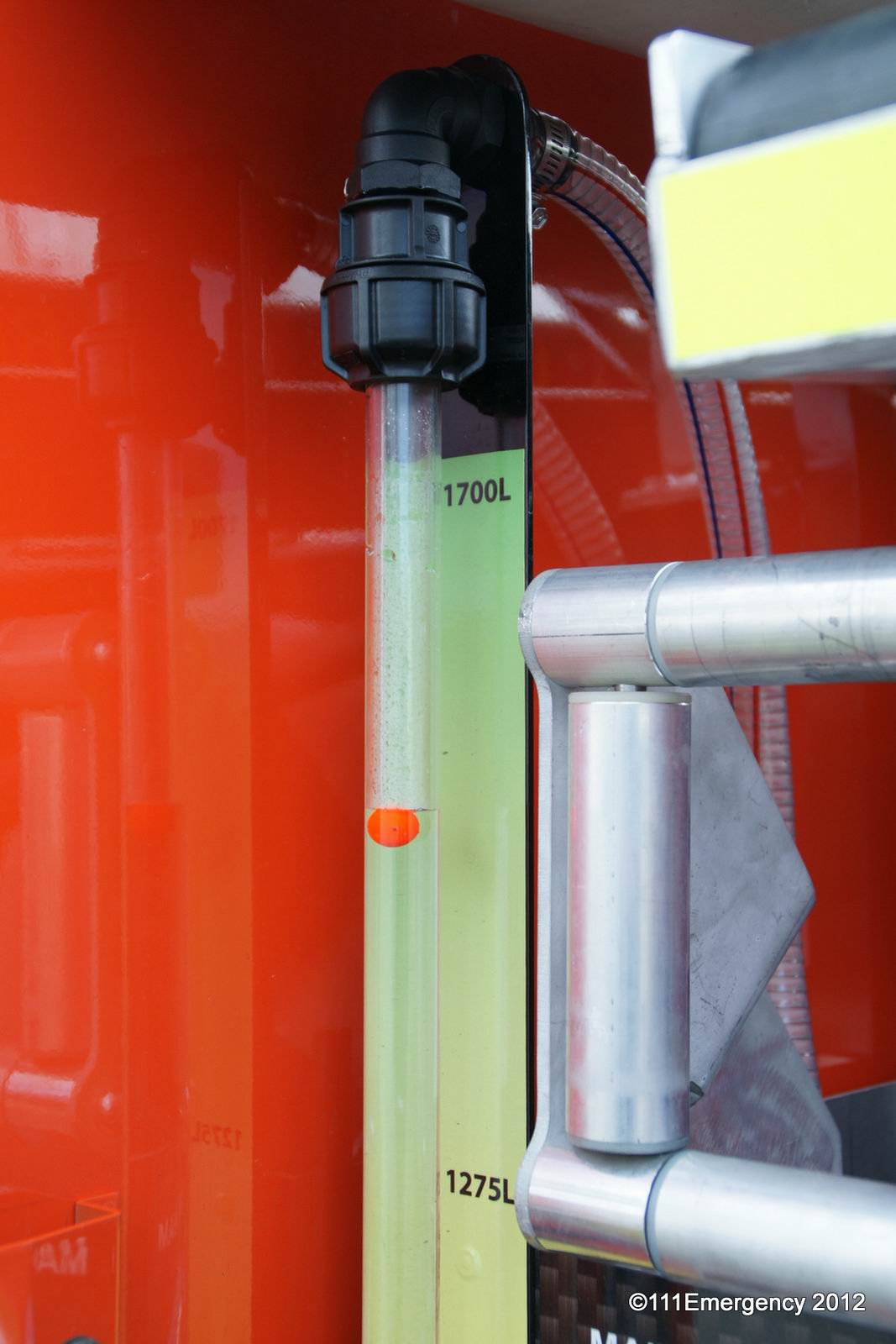

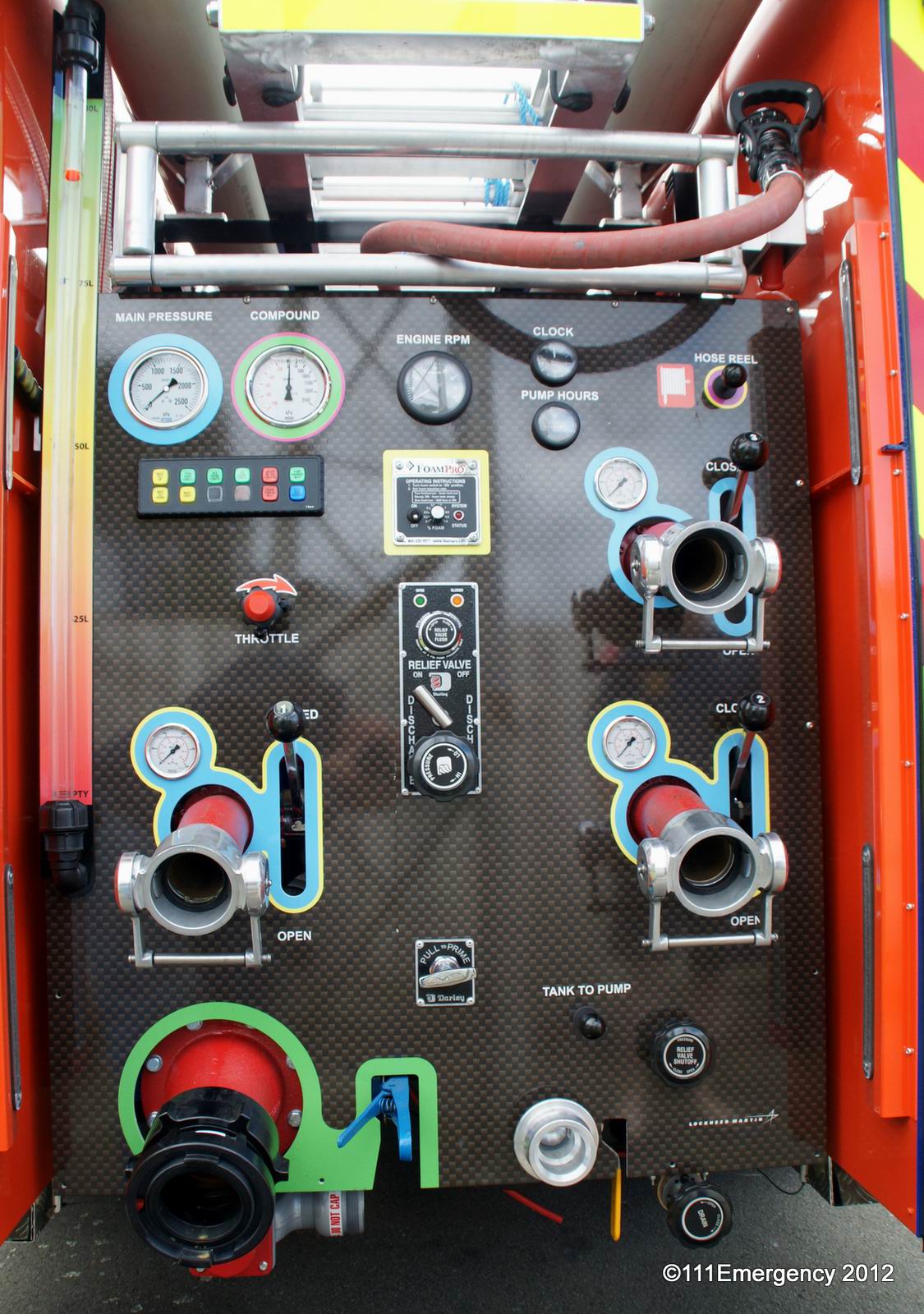

Specifications from NZFS Engine: 4 cylinder Euro V diesel, displacement of 5193cc, with electronically controlled direct injection Chassis - 3700mm wheel base Transmission - MZZ6F 6 Speed Automated manual with full automatic and sequential manual shift modes Braking System - Disc brakes front and drum on rear axle Height - 2600mm Length - 6700mm Width - 2300mm excluding mirrors Operational Weight - 8100kg Equipment Stowage - Lockers provide stowage for 900kg of equipment in 4.7cubic metres of locker space, not including suction hose stowage. Ladder - Long access ladder is Ulrich DE 1212. Short access ladder is Ulrich DE 0707 Water Pump - Single stage pump and rear mounted pump panel, driven by Power Take Off from the drive line. Output 1320l/min at 1050kpa from 3 main deliveries Hose Reel - 60 metre Output 180l/m at 1500kpa from hose reel Foam System - FoamPro 1600 direct injection with a 60 litre plastic storage tank Water Tank - 1600l usable. Material - high density polyethylene with baffle balls provided |
||
